產品介紹

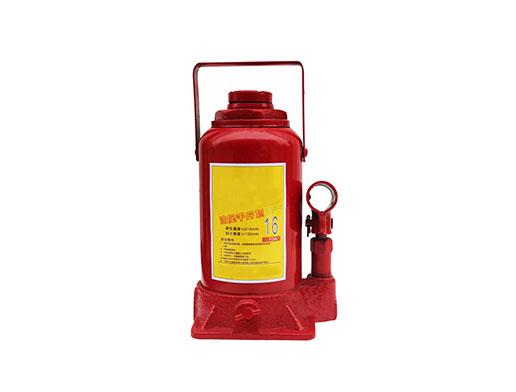

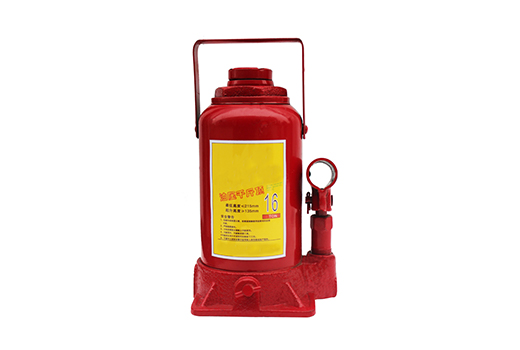

油壓千斤頂是一-體式千斤頂，也可稱為液壓千斤頂，立式油壓千斤頂是國家定型新系列產品。
油壓千斤頂結構緊湊，體積小，重量輕，攜帶方便，廣泛適用于工廠倉庫、橋梁、碼頭、交通運輸和建筑I程等部門的起重作業。
液壓千斤頂只能直立使用，其工作環境溫度為-20攝氏度到+45攝氏度,不宜在酸堿及腐蝕性氣體中使用。
| 型號 | 起重量 | 起重高度 | 最低高度 | 手柄長度 |
| QYL2 | 2T | 90MM | 158MM | 40MM |
| QYL3 | 3T | 80MM | 148MM | 50MM |
| QYL5 | 5T | 100MM | 180MM | 55MM |
| QYL8 | 8T | 100MM | 180MM | 55MM |
| QYL10 | 10T | 125MM | 200MM | 55MM |
| QYL12 | 12T | 125MM | 245MM | 80MM |
| QYL16 | 16T | 160MM | 250MM | 80MM |
| QYL20 | 20T | 125MM | 220MM | 60MM |
| QYL32 | 32T | 145MM | 250M | - |
| QYL50 | 50T | 180MM | 300MM | - |
| QYL100 | 100T | 180MM | 335MM | - |
| QYL2D | 2T | 80MM | 148MM | 50MM |
| QYL4D | 4T | 110MM | 180MM | 50MM |
| QYL6D | 6T | 125MM | 200MM | 60MM |
| QYL8D | 8T | 125MM | 200MM | 60MM |
| QYL10D | 10T | 125MM | 200MM | 60MM |
| QYL12D | 12T | 135MM | 210MM | 60MM |
| QYL16D | 16T | 140MM | 225MM | 60MM |
| QYL20D | 20T | 145MM | 235MM | 60MM |
| QYL32D | 32T | 150MM | 255MM | - |
| QYL50D | 50T | 180MM | 285MM | - |
